Broken Off Porsche Exhaust Bolts And How To Repair them
Ok so you have probably arrived at this page because you have broken or snapped off exhaust manifold bolts on your Porsche. The original bolts installed by the factory are made from Zinc plated steel and offer very little resistance to corrosion. Due to their location on the engine they are very much exposed to conditions that speed up rust with constant heat and cooling cycles.
1. High-Heat Cycling and Oxidation
The primary culprit is the extreme thermal stress. Exhaust manifolds operate at temperatures exceeding 800°C. The OEM bolts are typically high-tensile steel, which, when subjected to thousands of heat cycles (expanding when hot, contracting when cold), undergoes a process called thermal fatigue. This cycling breaks down the molecular integrity of the bolt and sheds any protective zinc or DACROMET coatings almost immediately, leaving the raw steel vulnerable to the atmosphere.
2. Dissimilar Metal Corrosion (Galvanic Action)
The 996 engine block and cylinder heads are made of an aluminum alloy, while the manifold bolts are steel. When these two different metals touch in the presence of an electrolyte—like moisture or road salt—a battery-like chemical reaction occurs. Because aluminum is more “noble” in certain conditions or because the steel is lower grade than the surrounding components, the steel bolts act as the sacrificial anode. Over time, they literally dissolve or “weld” themselves into the aluminum threads of the head.
3. The “Road Salt” Trap
The 996 due to it being a rear-engine car, meaning the exhaust manifolds are positioned low and right behind the rear tyres. In damp climates or regions that use road salt, the tyres constantly kick a high-pressure spray of salt water directly onto the glowing-hot manifolds. This salt acts as a catalyst, accelerating the rusting process to a point where the bolt heads eventually lose their hexagonal shape, turning into rounded, crumbly “nubs” that eventually snap off under the slightest torque.
By the time an owner tries to remove them, the bolt has often become a single, fused piece of iron oxide with the cylinder head. This is exactly why specialized tools like the Verboten Motorsport jig are essential; they acknowledge that the bolt is no longer a removable part, but a solid mass that must be precision-drilled out to save the engine.

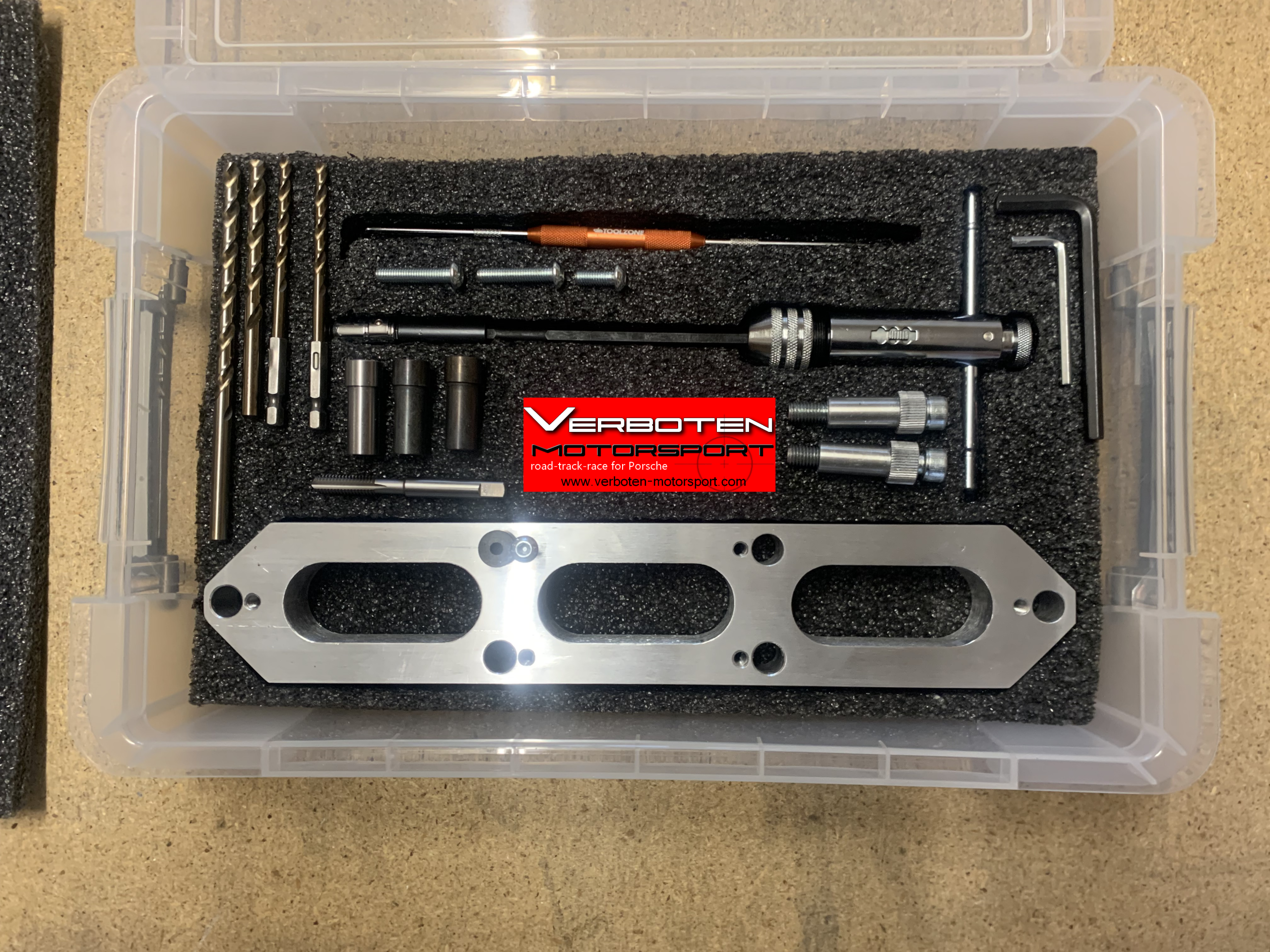

The Verboten Motorsport Exhaust Manifold Stud Repair Kit is a precision tool specifically designed for the Porsche community. Because Porsche engines use steel bolts in aluminum heads, they are notorious for snapping due to galvanic corrosion—this kit allows you to fix that without the massive expense of removing the engine
Before You start to repair your Porsche 996,997, Boxster 986 and Boxster/ Cayman 997 Gen 1 snapped off exhaust bolts
A week or so before you try to remove your exhaust manifold/header bolts use a penitrating oil to give you the best possible chance. Ideally each day spray PlusGas Formula ‘A’ is a high-performance, silicone-free dismantling lubricant designed to quickly penetrate and release seized, rusted, or corroded metal components. We use PlusGas ourselves.. Don’t use WD40 type oils as these do not work when removing rusted bolts. Take it from us….PlusGas gives you the best chance of removing your rusted exhaust header manifold bolts !
The Verboten Motorsport Exhaust Manifold Stud Repair Kit is a precision tool specifically designed for the Porsche community. Because Porsche engines use steel bolts in aluminum heads, they are notorious for snapping due to galvanic corrosion—this kit allows you to fix that without the massive expense of removing the engine.
Which Porsche Cars Exhaust Manifold & Header snapped bolts can be repaired using this specific kit :
Verboten-Motorsport.com produces specific jigs tailored to the bolt patterns of different Porsche generations. This Repair Kit is suitable for :
Porsche 911 Models: 996 (all), 997 (Gen 1), 986 Boxster and 987 Gen 1 Boxster and Cayman.
Porsche Boxster: 986, Boxster/Cayman: 987 (Gen 1).
If you have a different Porsche with broken exhaust manifold bolts click on your car below and head to the correct repair jig
Verboten produces specific jigs tailored to the bolt patterns of different Porsche generations. Generally, their range covers:
Porsche Boxster/Cayman 981 including GT4 and Spyder. 2012-2016
Porsche Boxster /Cayman 2.0 ,2.5 and 4.0 718 including GT4/Spyder. 2016- Current
How to Use the Kit to repair your Porsche snapped off exhaust manifold bolts.
The process is designed to be “true and square” so you don’t accidentally drill into the aluminum of the cylinder head in the incorrect position.
Preparation: Remove the exhaust manifold. If a stud is protruding, it helps to use the kit’s “Easy Locator” collar supplied in every kit to center the bolt remains to the jig. If it’s snapped flush, the jig will align using the remaining good bolt holes.
Mounting the Jig: Bolt the CNC-machined aluminum jig to the cylinder head using the provided spacers and any surviving thread holes. This provides a rigid, fixed platform.
The Pilot Hole: Insert the Hardened Pilot Bushing into the jig over the broken stud. Using the supplied cobalt pilot drill, drill into the center of the broken bolt. Tip: Use plenty of cutting fluid (engine oil will do the trick or we can supply specially formulated cutting and lubrication oild and use low drill speeds and let the drill bit do the work so don’t push on it too hard.
Core Removal: Swap the pilot bushing for the larger Core Removal Bushing. Use the larger drill bit to remove the bulk of the old bolt. You are essentially “hollowing out” the old steel.
Picking & Tapping: Use a scribe to pick out the remaining “coil” of old thread. Once clear, insert the Threading Bushing and use the supplied tap to chase the original threads.
Final Install: Clean the hole with compressed air and install new studs (Verboten recommends their Titanium Stud Kit with specialized “StudLock” to prevent this from ever happening again).
Pro Tip: When working under the car, gravity is your enemy. Always wear safety goggles—otherwise, every metal shard you drill out will find its way into your eyes!
